FPG-MS

Next-generation all-in-one machine for enveloped triangular tea bag production. Featuring the latest technology, it achieves high-speed, nonstop operation with a capacity of up to 120 bags per minute, while ensuring easy maintenance.

CE Certified
Horizontal Enveloping

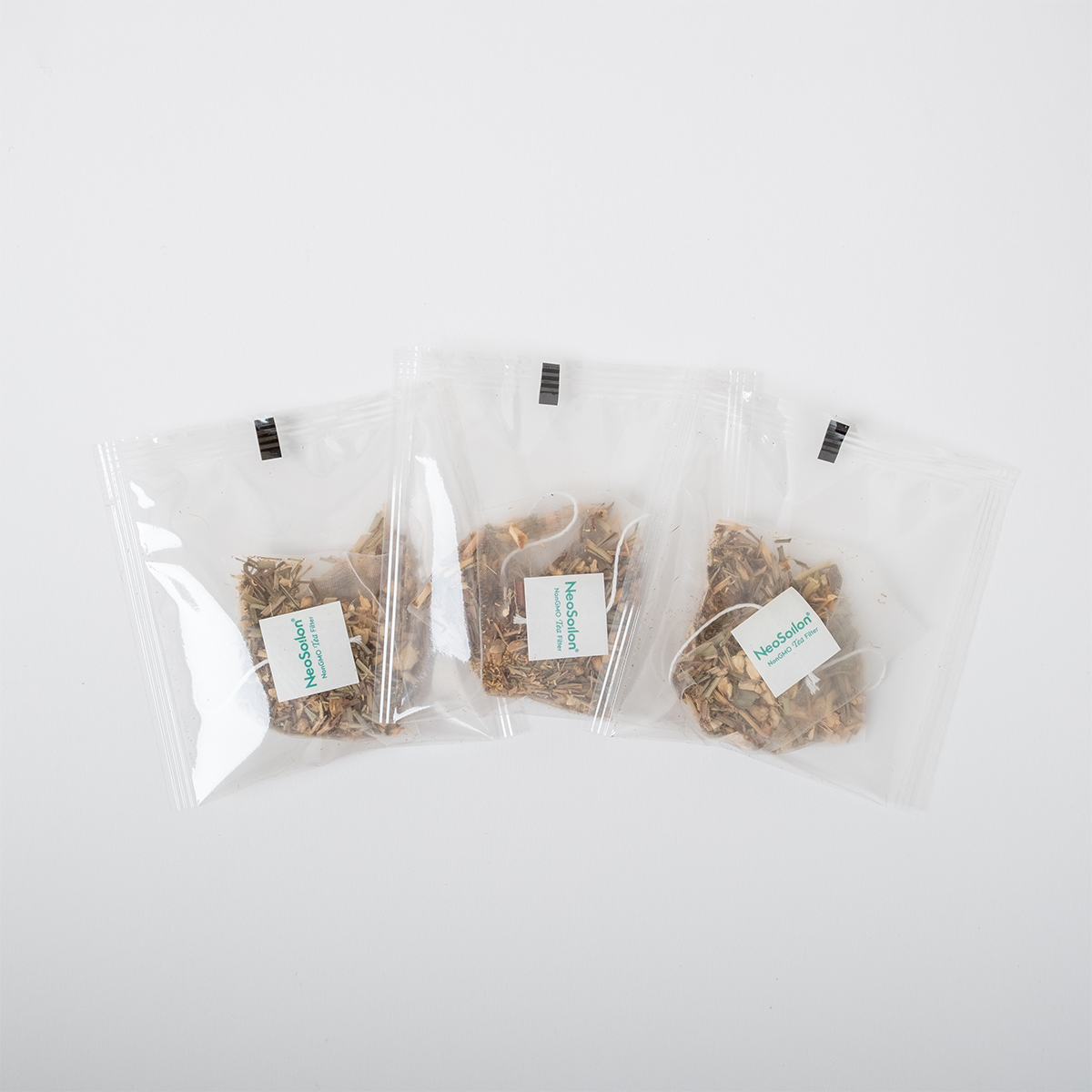

Efficient Production of Enveloped Triangular Tea Bags with One Machine

- Triangular tea bag and outer envelope packaging can be handled by a single machine.
*Rectangular tea bags (no outer envelopes) can also be produced.
- The splicers for automatic changeover of both filter rolls and envelope film rolls ensure uninterrupted production.
- The large touchscreen provides clear visual and detailed information, enabling operators to quickly understand machine status and fine-tune settings for optimal performance.

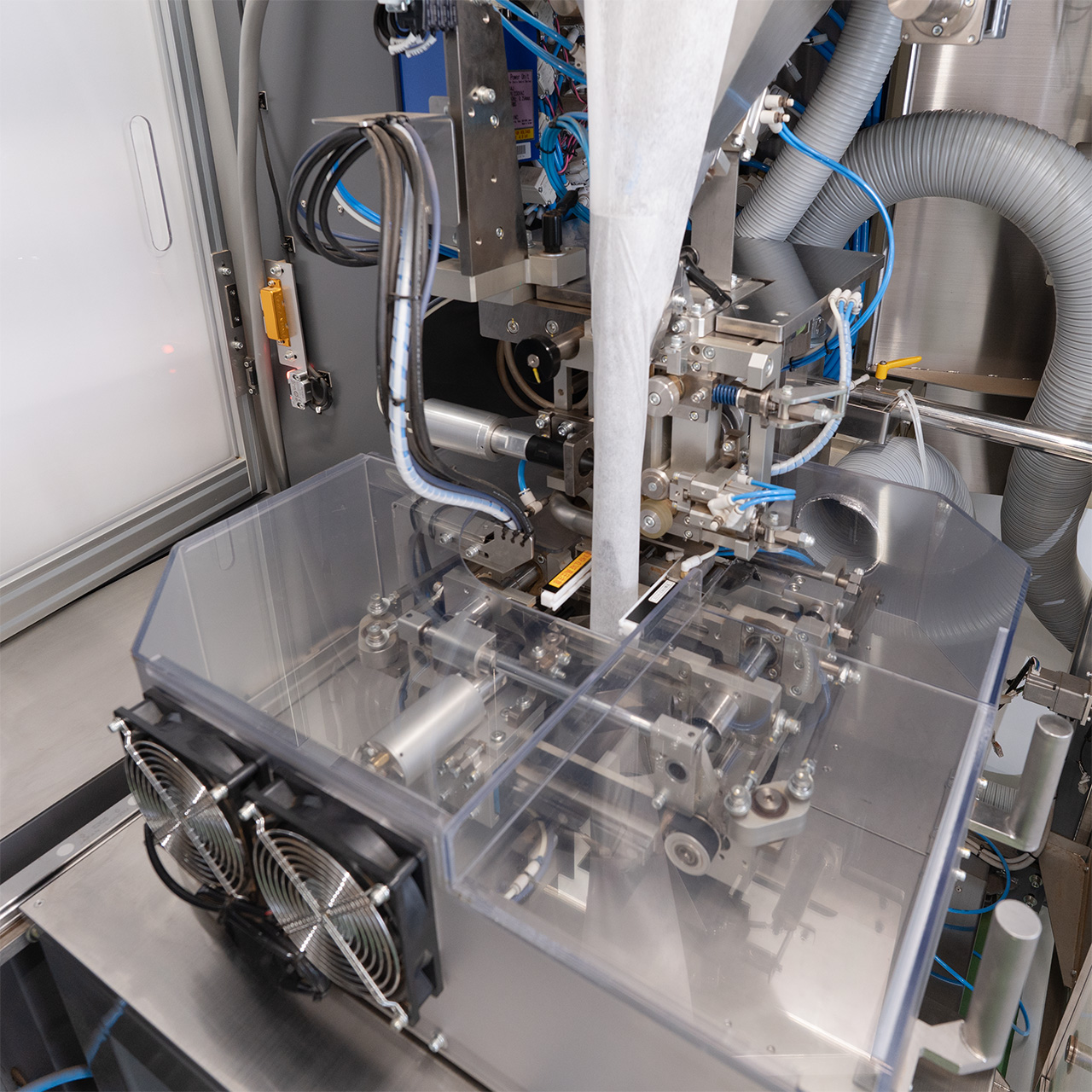

Introducing the New Sealing System for Inner Bags

The new sealing system unique to the MS series achieves strong sealing performance without compromising speed, maintaining high productivity of up to 120 bags/minute.

Introducing a New Envelope Cutter

Paper-based materials can now be used for envelopes with cleaner cutting, allowing for reduced-plastic packaging options.

Nitrogen Flushing Function: Essential for Long-Lasting Freshness and Flavor

Envelopes are flushed with nitrogen to reduce oxygen exposure, ensuring the products retain their freshness and flavor for a longer shelf life.

Clean Production with Dust Collection Feature

The built-in dust collection system in the bagging section minimizes the accumulation of fine tea dust and keeps the machine clean, reducing both maintenance needs and operational issues.

Downloadable Materials

DOWNLOAD FREE

CONTACT FORM

Packaging Method: Inner Bag: 3-side ultrasonic sealing and cutting
Outer Envelope: 3-side heat sealing

Measurement Method: Load-cell weigher

Capacity: Up to 120 bags/minute

Weight: 2,000 kg

Dimensions: 2,732 (W) x 1,255 (D) x 2924 (H) mm (Including the weigher)

Electrical Power Supply: 3 Phase 200 V 15 kW

Compressed Air Supply: 0.6 MPa 660 L/minute

Envelope Size: Length (Pitch): 80 to 120 mm
Width: 80 to 100 mm

Downloadable Materials

DOWNLOAD FREE

CONTACT FORM

Related Machines

LB-A

Multi-bucket feeder for loose tea and coffee materials, working seamlessly with our tea and coffee packaging machines. Automate your material loading with this machine for a safer and cleaner operation.

Various Belt Conveyors and Lifters

Various assisting devices can be offered to enable packaging line automation.

Envelope Aligning Machine

When envelope products are pre-produced and stored before being loaded into the next process, additional effort is required to manually align them in the correct orientation and quantity. The Envelope Alignment Machine automates this task, enabling the re-automation of the packaging line. With its expandability, it can be integrated into various downstream processes, such as weight checking, cartoning, and outer bag filling— including third-party equipment.
