PRODUCT ID :
NRC-50D
Semi-automatic cartoning machine suitable for packing 5 to 8 enveloped coffee bags, works seamlessly with Fuso enveloped coffee bag packaging machines for continuous production. Also adaptable for cartoning tea and other products based on your needs.
- Coffee
- Tea

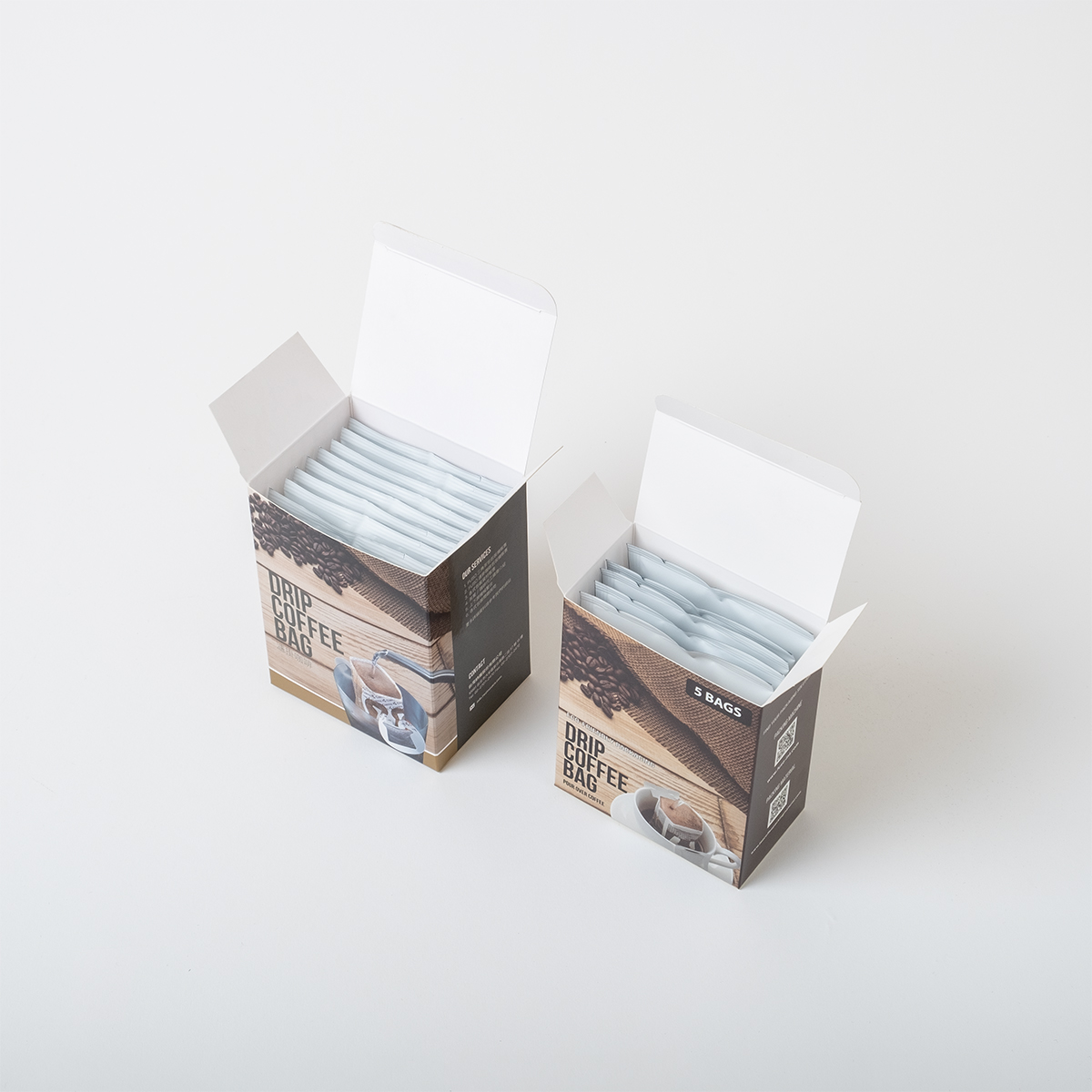

Optimized for Cartons Designed for Coffee Bag Products
- Common sizes for cartons with 5 to 8 coffee bag envelopes are supported.

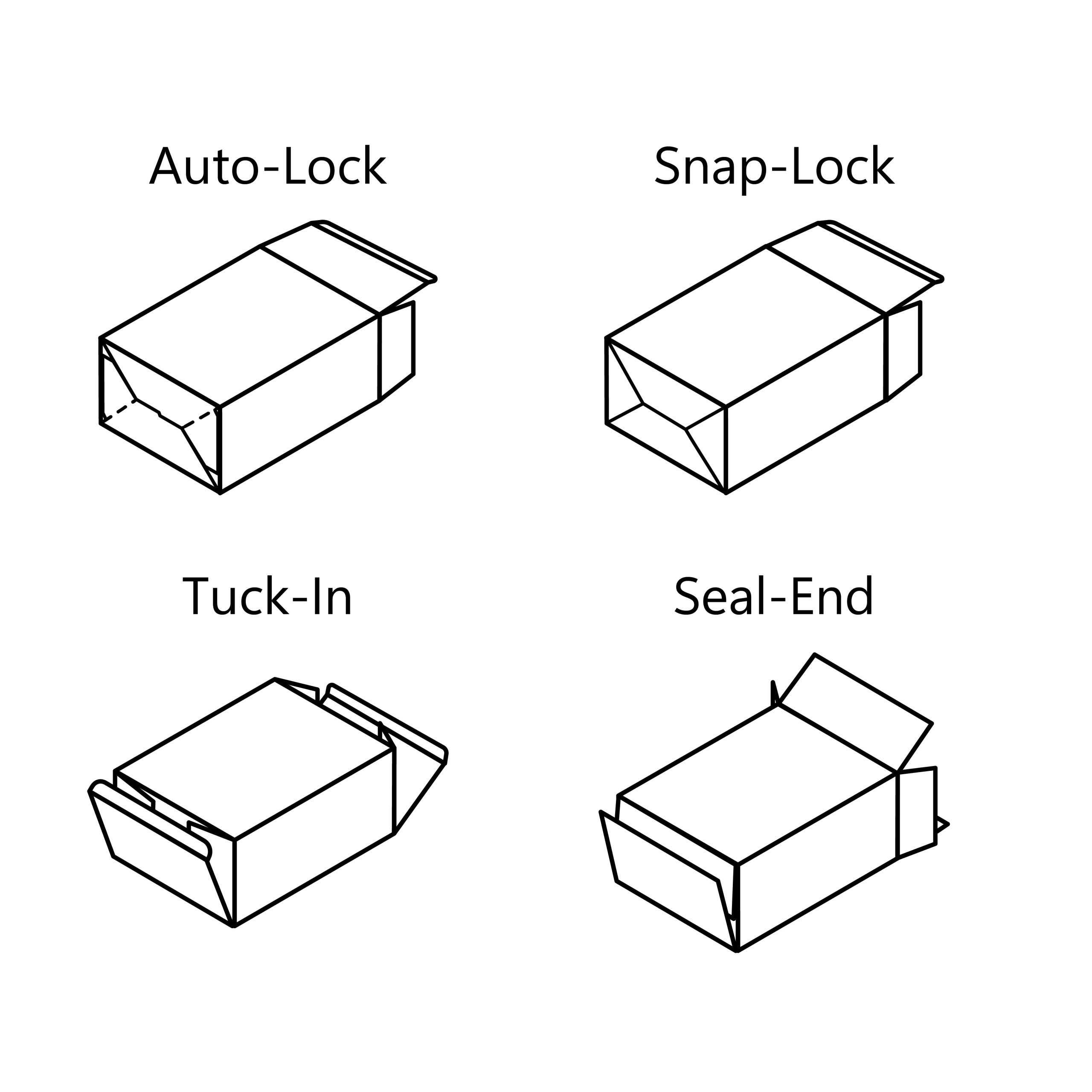

- This machine supports cartons with Snap-Lock, Seal-End (hot-melt adhesive), Auto-Lock, and Tuck-In buttoms.

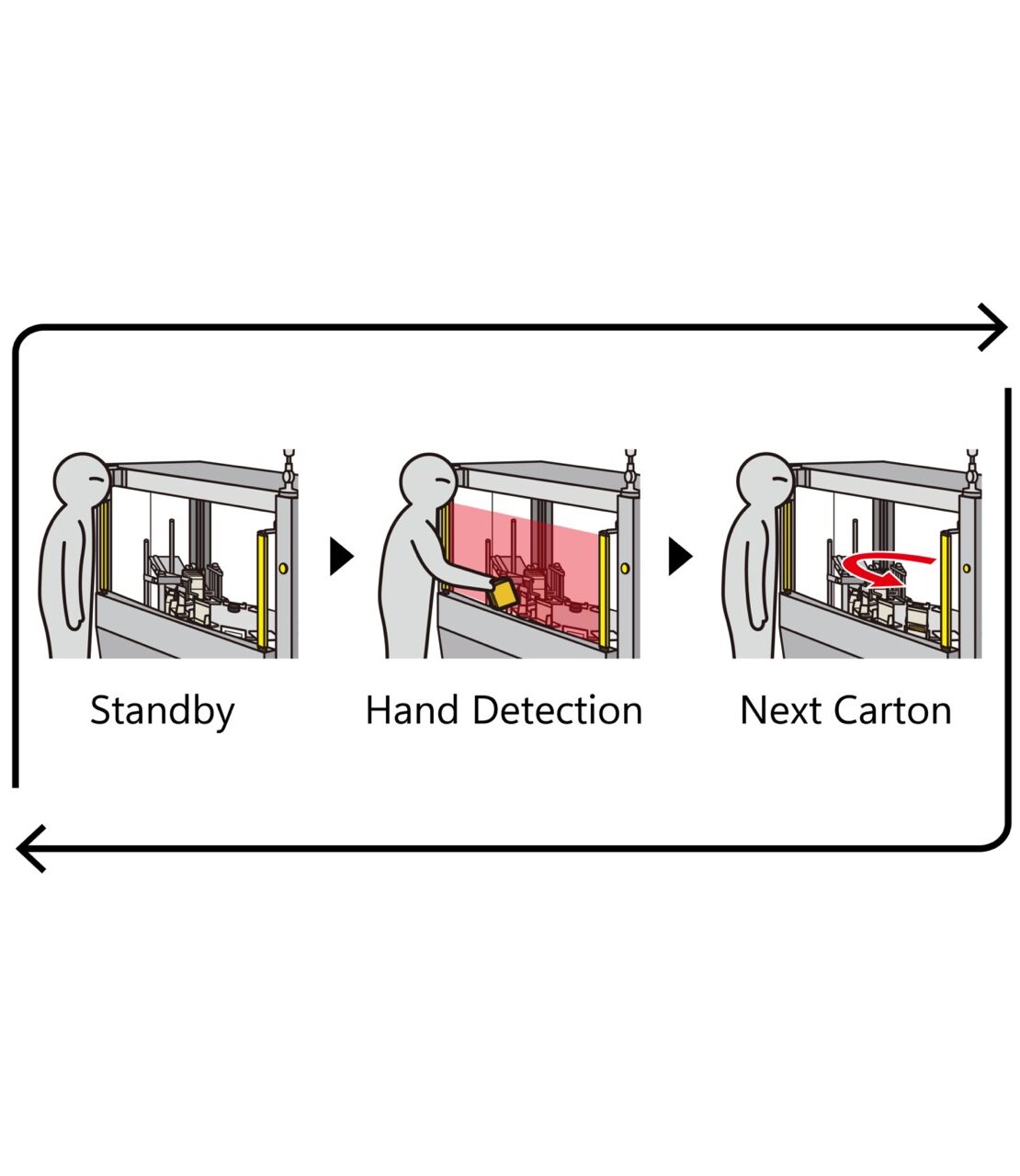

Quick and Safe Semi-Automatic Operation with Safety Light Curtain Sensor
The Safety Light Curtain sensor in the product loading area detects the operator's hand movements and automatically continues the operation. It also acts as a safety feature by immediately stopping the machine if a hand is detected while the machine is in motion.
Recommended Solution: FPG-MT1, FPG-LT, or FPG-T1 + NRC-50D
By integrating the Fuso enveloped coffee bag packaging machine FPG-MT1, FPG-LT, or FPG-T1 with the NRC-50D, you can streamline the cartoning of enveloped coffee bags.
Recommended Solution: Envelope Alignment Machine + NRC-50D
When envelope products are pre-produced and stored before being loaded into the cartoner, they must be aligned in a specific orientation and quantity. The Envelope Alignment Machine automates the process, minimizing manual effort and improving overall efficiency.
- Capacity
- Up to 30 cartons/minute
- Weight
- 450 kg
- Dimensions
- 1,698 (W) x 1,170 (D) x 1,600 (H) mm
- Electrical Power Supply
- Single-phase 220 to 240V 1.5 kW
- Compressed Air Supply
- 0.5 to 0.8 MPa 260 L/minute
- Carton Material
- Paper (250 to 350 g/m2)
- Carton Size
- Standard Model:
Width: 40 to 105 mm
Depth: 40 to 105 mm
Height: 70 to 200 mm
* Other sizes can be discussed upon request.
